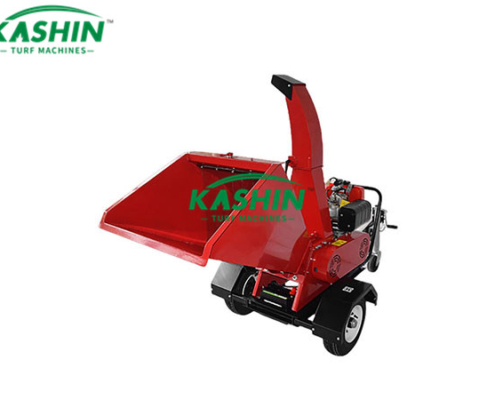

SWC-10 Wood shredder
The body is compact, sturdy and reliable, and easy to move.
Maximum crushing diameter 10cm.
Equipped with dual safety switches and emergency stop switches to ensure the personal safety of users.
The blade can be replaced by one person, making maintenance simple.
Humanized designed push-pull armrests and traction legs make moving easy and simple.
The discharge port cover can easily adjust the discharge angle.
Introduction
The body is compact, sturdy and reliable, and easy to move.
Maximum crushing diameter 10cm.
Equipped with dual safety switches and emergency stop switches to ensure the personal safety of users.
The blade can be replaced by one person, making maintenance simple.
Humanized designed push-pull armrests and traction legs make moving easy and simple.
The discharge port cover can easily adjust the discharge angle.
Specification
| Model | SWC-10 |
| Engine brand | Kohler |
| Max power (Kw/hp) | 10.5 / 14 |
| Fuel tank volume (L) | 7 |
| Start type | Manual / Electric |
| Safety system | Safety switch |
| Feeding type | Gravity automatic feeding |
| Drive type | Belt |
| No.of blades | 2 rotary blades + 1 fixed blade |
| Knife roller weight (kg) | 24.5 |
| Speed of knife roller (rpm) | 2800 |
| Inlet size (mm) | 580×560 |
| Inlet height (mm) | 850 |
| Discharge pipe direction | 3 options |
| Discharge port height (mm) | 1535 |
| Max chipping diameter (mm) | 100 |
| Overall dimension (LxWxH)(mm) | 2567x943x1621 |
