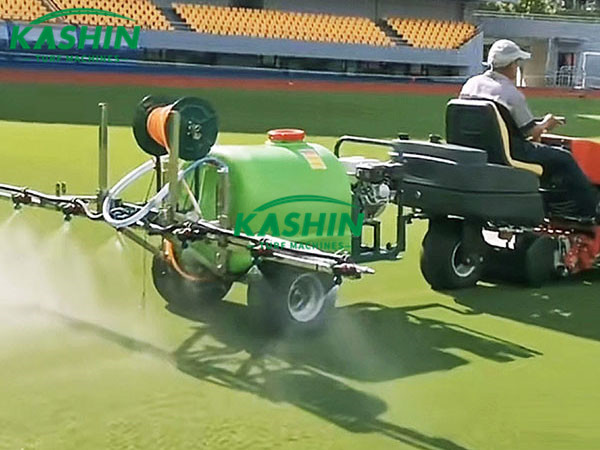

TS300-5 Sports Field Turf Sprayer

300l large capacity and sturdy water tank, which greatly improves the single use time, And there is a clear margin scale.

The high-pressure water pipe is equipped with a hand wheel, making it very convenient to open and close in daily life.

Ergonomic armrests and flexible steering wheels make movement very easy and convenient.

Equipped with Honda GPl60 gasoline engine, power and durability are guaranteed.

Introduction

300l large capacity and sturdy water tank, which greatly improves the single use time, And there is a clear margin scale.

The high-pressure water pipe is equipped with a hand wheel, making it very convenient to open and close in daily life.

Ergonomic armrests and flexible steering wheels make movement very easy and convenient.

Equipped with Honda GPl60 gasoline engine, power and durability are guaranteed.

Model	T5300-5
Engine brand	HONDA
Triplex piston pump	3WZ-34
Pump max water absorption (L/min)	34
Working pressure (Mpa)	1-3
Water tank (L)	301
Water gun horizontal ranee (m)	12~15
Jet height (m)	10~12
Spraying width (m)	5
Pump working speed (rpm)	800~1000
Structure weight (kg)	120
Packing size (LxH)(mm)	1500x950x1100
