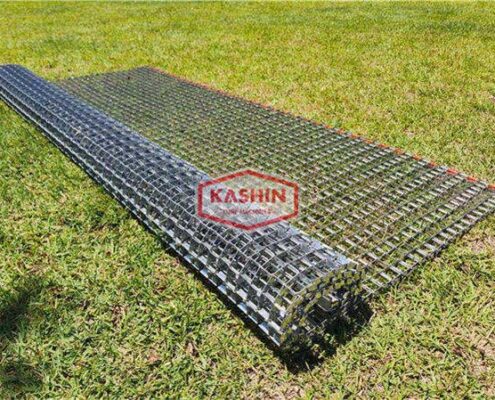

DM Series Turf Drag Mat
KASHIN DM series of new Drag Mats, adopt the original design of the unit structure.
According to the different cell composition, it is divided into high-end L-shaped and cost-effective U-shaped.
All materials and standard parts are made of 304# stainless steel.
The single element is stamped and formed of stainless steel, with a round appearance, no burrs, wear resistance and no rust.
Can be folded horizontally
The width and length can be customized according to user requirements.
Some households need a trawl net of galvanized steel sheet, which can be customized.
Introduction
Drag mats are used on baseball diamonds, sand traps on golf courses or any other sports field application where you need dirt, gravel or sand perfectly leveled out. The other very common use for a drag mat is to prepare soil before laying sod, hydro-seeding, construction, or regular grass seeding. Save yourself or your employees many, many hours of back breaking raking. Attach to a utility vehicle such as a Gator and simply pull the mat off the soil and you will have a perfectly level area when completed.
Our drag mats are with very high quality, flexible and weighted to make the task easy. The drag mats have a unique clinch to reduce snags and a rivet free u-bar that holds the mat firmly flat on the surface. There is a heavy nylon rope or tow chains tied to the bar on the drag mat that can be pulled by a vehicle or if needed by a person. There is no top or bottom, so this makes the mats easy to use and requires very little employee training.
Smooth out rough surfaces quickly with these very high quality and durable drag mats.
Specification
Model | DG1200U | DG1500U | DG1830U | DG2000U |
Type | U | U | U | U |
Size(LxWxH)(mm) | 1200x900x12 | 1550x1500x12 | 1830x1830x12 | 2000x1800x12 |
Structure weight(kg) | 24 | 40 | 48 | 52 |
Working width(mm) | 1200 | 1500 | 1830 | 2000 |
Material thickness(mm) | 1.8mm/2.0mm | 1.8mm/2.0mm | 1.8mm/2.0mm | 1.8mm/2.0mm |
Cell size(LxW)(mm) | 33×33 | 33×33 | 33×33 | 33×33 |
